Environment variables in the Laboratory allow you to manage configuration values that can be used across all your operations. They're perfect for storing API keys, endpoint URLs, authentication tokens, and other environment-specific settings.

What are Environment Variables?

Environment variables are key-value pairs that:

Persist across operations - Set once, use everywhere
Environment-specific - Different values for dev, staging, production
Secure storage - Keep sensitive data out of your operations
Easy updates - Change values in one place

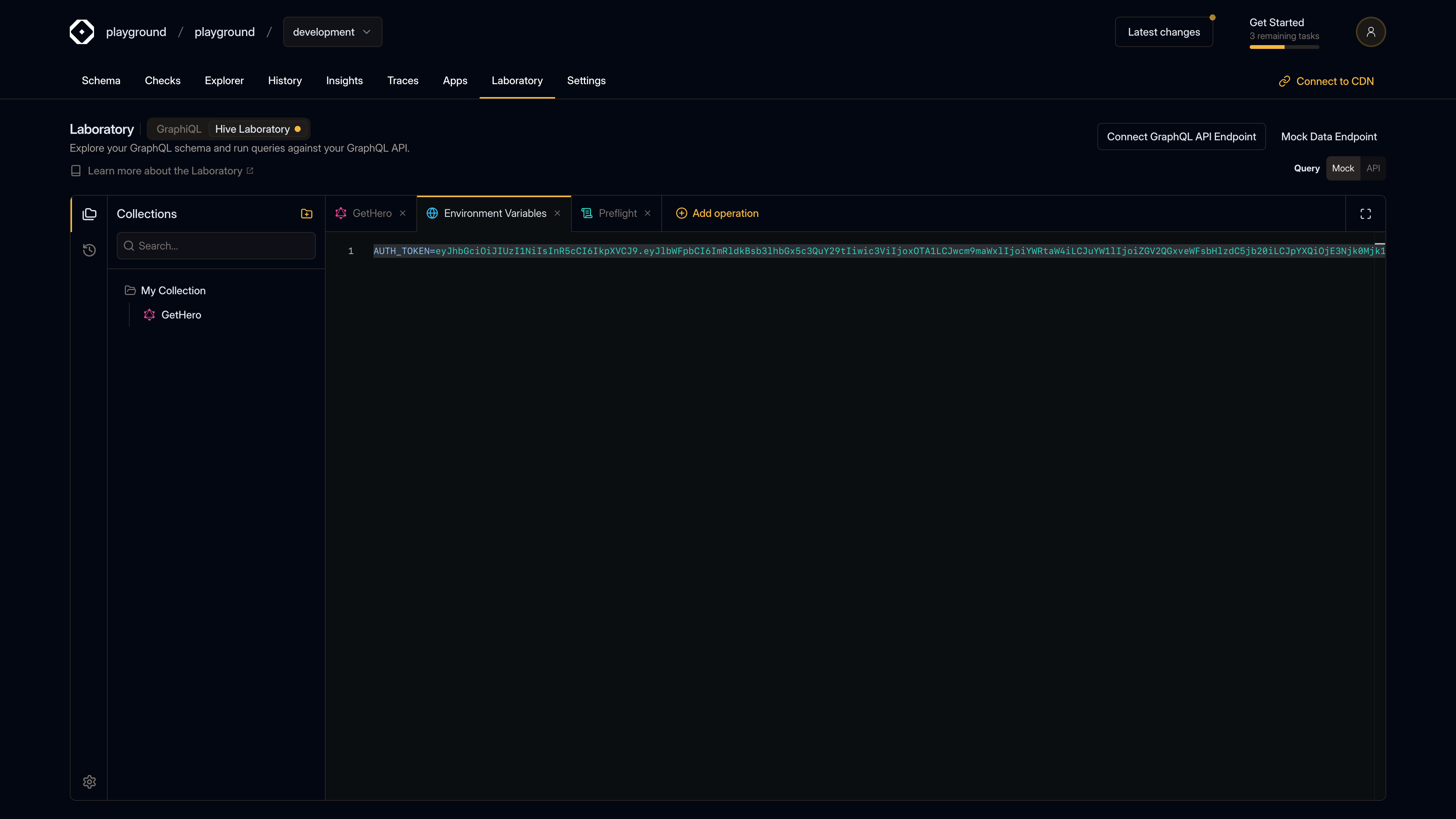

Accessing Environment Variables

To manage environment variables:

Open the Settings menu (gear icon in the left sidebar)
Select "Environment Variables"
Or use the Command Palette (⌘J) and select "Open Environment Variables"

Setting Environment Variables

Environment variables are set in a .env file format:

API_KEY=your-api-key-here
AUTH_TOKEN=your-auth-token
ENDPOINT_URL=https://api.example.com/graphql
ENVIRONMENT=development

Format

Each line represents one variable:

KEY=value

Key - Variable name (alphanumeric and underscores)
Value - Variable value (can contain spaces, special characters)
Comments - Lines starting with # are ignored
Empty lines - Blank lines are ignored

Examples

# API Configuration
API_KEY=sk_live_1234567890
API_SECRET=secret_abc123

# Environment
ENV=production
DEBUG=false

# URLs
BASE_URL=https://api.example.com
GRAPHQL_ENDPOINT=/graphql

Using Environment Variables

In Preflight Scripts

Environment variables are accessed in preflight scripts using the lab.environment API:

// Get a variable
const apiKey = lab.environment.get("API_KEY");

// Set a variable
lab.environment.set("API_KEY", "new-value");

// Delete a variable
lab.environment.delete("API_KEY");

In Operations

While environment variables are primarily used in preflight scripts, you can reference them when building operations. The exact method depends on how your preflight scripts expose them.

Common Use Cases

API Keys

Store API keys securely:

STRIPE_API_KEY=sk_live_...
GITHUB_TOKEN=ghp_...
SENDGRID_API_KEY=SG....

Authentication Tokens

Manage authentication tokens:

JWT_TOKEN=eyJhbGciOiJIUzI1NiIsInR5cCI6IkpXVCJ9...
SESSION_ID=abc123def456

Endpoint Configuration

Configure different endpoints:

# Development
DEV_ENDPOINT=http://localhost:4000/graphql

# Production
PROD_ENDPOINT=https://api.example.com/graphql

Feature Flags

Control feature availability:

ENABLE_ANALYTICS=true
ENABLE_BETA_FEATURES=false

Environment-Specific Variables

Development Environment

ENVIRONMENT=development
API_URL=http://localhost:4000
DEBUG=true
LOG_LEVEL=debug

Staging Environment

ENVIRONMENT=staging
API_URL=https://staging.example.com
DEBUG=false
LOG_LEVEL=info

Production Environment

ENVIRONMENT=production
API_URL=https://api.example.com
DEBUG=false
LOG_LEVEL=error

Best Practices

Naming Conventions

Use consistent naming:

UPPERCASE - Use uppercase for all variable names
Underscores - Use underscores to separate words
Descriptive - Use clear, descriptive names
Prefixes - Use prefixes for related variables

Good examples:

API_KEY
AUTH_TOKEN
GRAPHQL_ENDPOINT
STRIPE_SECRET_KEY

Bad examples:

key
token123
endpoint

Organization

Organize variables logically:

# Authentication
AUTH_TOKEN=...
REFRESH_TOKEN=...

# API Configuration
API_BASE_URL=...
API_VERSION=v1

# Feature Flags
FEATURE_X_ENABLED=true
FEATURE_Y_ENABLED=false

Security

Never commit secrets - Don't commit environment variables with real secrets to version control
Use placeholders - Use placeholder values in shared configurations
Rotate regularly - Update API keys and tokens regularly
Separate environments - Use different values for dev/staging/production

Documentation

Document your variables:

# Stripe API Key for payment processing
# Get from: https://dashboard.stripe.com/apikeys
STRIPE_API_KEY=sk_test_...

# GitHub Personal Access Token
# Create at: https://github.com/settings/tokens
GITHUB_TOKEN=ghp_...

Managing Variables

Adding Variables

Open Environment Variables tab
Add a new line with KEY=value format
Variables are saved automatically

Updating Variables

Find the variable in the editor
Update the value after the = sign
Changes are saved automatically

Deleting Variables

Remove the line containing the variable
Or set it to an empty value: KEY=
Changes are saved automatically

Comments

Add comments to document variables:

# This is a comment
API_KEY=value # Inline comment

Integration with Preflight

Environment variables work seamlessly with preflight scripts:

// Preflight script
const apiKey = lab.environment.get("API_KEY");
if (apiKey) {
  lab.request.headers.set("X-API-Key", apiKey);
}

// You can also set variables from preflight
lab.environment.set("LAST_REQUEST_TIME", Date.now().toString());

Troubleshooting

Variable Not Found

If a variable isn't found:

Check spelling - Variable names are case-sensitive
Verify it's set - Make sure the variable exists in the Environment Variables tab
Check format - Ensure it follows KEY=value format

Variable Not Updating

If changes aren't taking effect:

Save the Environment Variables tab
Re-run your operation
Check for syntax errors in the .env format

Special Characters

If your value contains special characters:

# Spaces are fine
MESSAGE=Hello World

# Quotes are included in value
MESSAGE="Hello World"

# Special characters work
PASSWORD=P@ssw0rd!123

Empty Values

To set an empty value:

OPTIONAL_VAR=

Or simply omit the variable.

Security Notes

Local storage - Environment variables are stored locally in your browser
Not encrypted - Values are stored in plain text
Browser-specific - Variables are per-browser, not synced across devices
Session-based - Variables persist until you clear browser data

For sensitive production data, consider:

Using preflight scripts to prompt for values
Storing secrets in secure vaults
Using organization-level environment management (if available)
